Luminey Elecra PV8000 6kW Hybrid Solar Inverter – 48V Single Phase

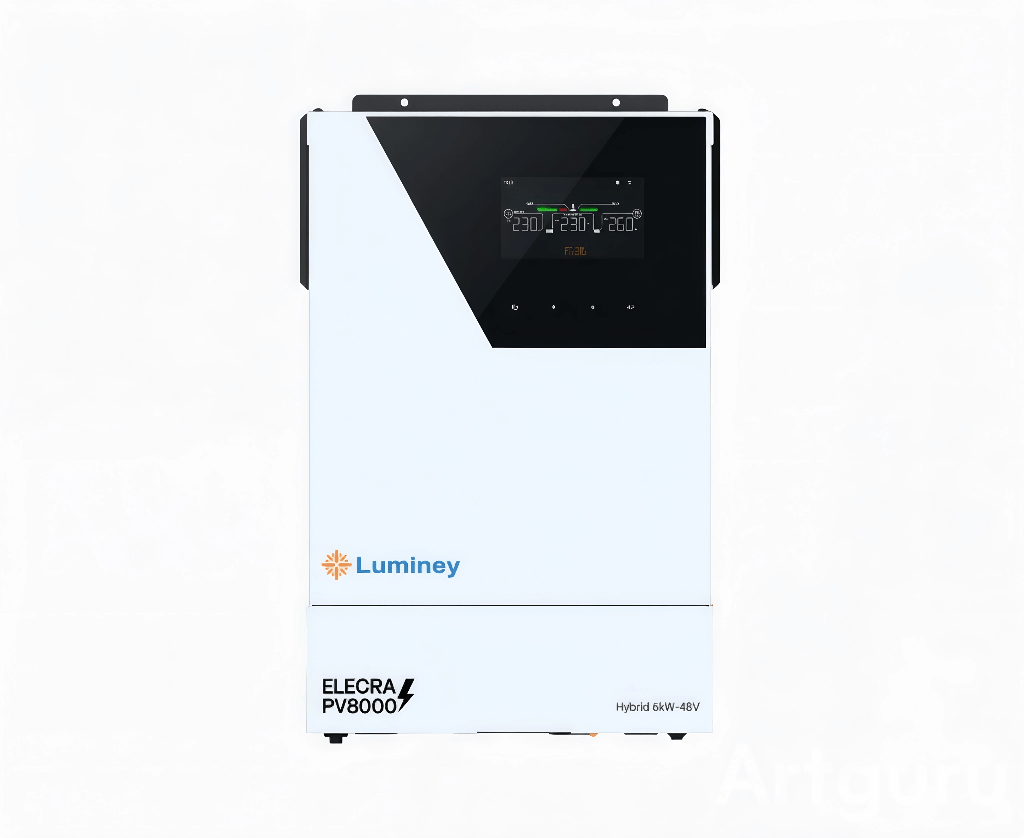

Luminey Elecra PV8000 6.2kW Hybrid Solar Inverter

The Luminey Elecra PV8000 is an advanced 6.2kW hybrid solar inverter designed for homes, offices, shops, and small commercial properties.

It intelligently manages power from solar panels, batteries, the utility grid, and connected loads while supporting grid-tied, off-grid, and grid-connected backup operating modes.

Up to 8000W Solar Input

The PV8000 supports a maximum PV input of 8000W, allowing users to install a high-capacity solar array for improved daytime power generation.

Its MPPT operating range of 120–430V DC helps maximize solar-energy harvesting across changing sunlight conditions.

6.2kW Single-Phase Output

The inverter delivers 6200W rated output power and supports nominal AC voltages of 220V, 230V, and 240V.

Its pure sine-wave output provides clean and stable electricity for household appliances, computers, refrigerators, lighting, pumps, and sensitive electronic equipment.

48V Battery Compatibility

The Elecra PV8000 operates with a 48V battery system and includes a built-in battery-management system for compatible energy-storage batteries.

It supports Luminey Atrix and Monawall batteries and can operate with or without an installed battery, depending on system configuration.

Up to 120A Charging

The inverter supports:

• Maximum solar charging current of 120A
• Maximum AC charging current of 120A
• Maximum combined charging current of 120A
• Maximum charging power of 6000W

This provides strong battery-charging performance for larger residential energy-storage systems.

Grid-Tied and Off-Grid Operation

The PV8000 supports multiple operating modes:

• Grid-tied solar operation
• Off-grid operation
• Grid-tied operation with battery backup
• Grid-feeding operation
• Zero-export configuration

This flexibility allows the inverter to serve both backup-focused and solar self-consumption applications.

Dual-Output Load Management

Dual output allows smart and heavy loads to be separated. Users can prioritize essential appliances while controlling higher-consumption equipment according to battery and solar availability.

Parallel Expansion

A built-in parallel kit allows up to nine compatible PV8000 units to operate together, providing scalability for larger installations.

Smart Monitoring and Control

The inverter includes:

• Built-in Wi-Fi
• Mobile application monitoring
• 4.3-inch coloured touch LCD
• USB On-the-Go
• USB, RS232, RS485 and dry-contact interfaces

These features provide convenient local and remote monitoring of system performance.

Key Features

• 6200W rated single-phase output
• Maximum 8000W PV input
• Maximum 500V DC PV voltage
• 120–430V DC MPPT range
• 48V battery-system support
• Maximum 6000W charging power
• Maximum 120A charging current
• Pure sine-wave output
• 96% maximum grid-tied conversion efficiency
• 93% battery-mode efficiency
• Built-in Wi-Fi and application monitoring
• 4.3-inch coloured touch LCD
• Built-in battery-management system
• Compatible with Luminey Atrix and Monawall batteries
• Works with or without a battery
• Dual output for smart and heavy loads
• Grid-feeding functionality
• Zero-export support
• Grid-tied, off-grid and backup operating modes
• Parallel operation of up to nine units
• Short-circuit protection
• External anti-dust filter option
• IP21 protection rating
• 12-year limited service-warranty arrangement subject to terms

Technical Specifications
